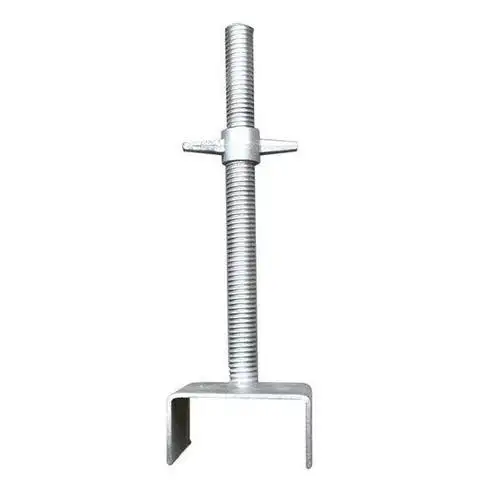

U Head Jack
Available Types: Solid and hollow options to meet diverse load requirements and application needs
Material: High-quality Q235 carbon steel for reliable strength and durability
Surface Finish Options:
-
Painted finish for cost-effective protection
-
Galvanized finish for enhanced corrosion resistance
Tube Dimensions: Available in 30mm or 34mm outer diameter
Thread Pitch: Choice of 6.35mm or 10.0mm to suit different adjustment requirements
Base Plate Specifications: 160mm × 90mm × 30mm × 5mm, providing stable load distribution
Adjustable Length Range: 400mm to 500mm, allowing flexible height adjustment on site
Related products
Describe
| Product Name | Type | Screw Rod (mm) | Base Plate (mm) |
|---|---|---|---|
| Adjustable Base Jack | Solid | 30 × 400 | 120 × 120 × 5 |
| Solid | 30 × 600 | 120 × 120 × 5 | |
| Solid | 32 × 400 | 120 × 120 × 5 | |
| Solid | 32 × 600 | 120 × 120 × 5 | |
| Solid | 34 × 400 | 120 × 120 × 5 | |
| Solid | 34 × 600 | 120 × 120 × 5 | |
| Solid | 35 × 400 | 150 × 150 × 5 | |
| Solid | 35 × 500 | 150 × 150 × 5 | |
| Solid | 35 × 600 | 150 × 150 × 5 | |
| Solid | 38 × 500 | 150 × 150 × 5 | |
| Solid | 38 × 750 | 150 × 150 × 5 | |
| Solid | 45 × 400 | 150 × 150 × 5 | |
| Solid | 45 × 500 | 150 × 150 × 5 | |
| Solid | 45 × 600 | 150 × 150 × 5 | |
| Hollow | 35 × 4 × 600 | 150 × 150 × 5 | |
| Hollow | 38 × 4 × 600 | 150 × 150 × 5 | |
| Hollow | 48 × 4 × 600 | 160 × 160 × 6 | |
| Hollow | 35 × 5 × 400 | 150 × 150 × 5 | |
| Hollow | 35 × 5 × 500 | 150 × 150 × 5 | |
| Hollow | 35 × 5 × 600 | 150 × 150 × 5 | |
| Hollow | 38 × 5 × 500 | 150 × 150 × 5 | |
| Hollow | 38 × 5 × 750 | 150 × 150 × 5 | |
| Hollow | 45 × 5 × 400 | 150 × 150 × 5 | |
| Hollow | 45 × 5 × 500 | 150 × 150 × 5 | |
| Hollow | 45 × 5 × 600 | 150 × 150 × 5 | |
| Adjustable U‑head Jack | Solid | 30 × 400 | 150 × 120 × 50 × 5 |
| Solid | 30 × 600 | 150 × 120 × 50 × 5 | |
| Solid | 32 × 400 | 150 × 120 × 50 × 5 | |
| Solid | 32 × 600 | 150 × 120 × 50 × 5 | |
| Solid | 34 × 400 | 150 × 120 × 50 × 5 | |
| Solid | 34 × 600 | 150 × 120 × 50 × 5 | |
| Solid | 38 × 500 | 150 × 120 × 50 × 5 | |
| Solid | 38 × 750 | 150 × 120 × 50 × 5 |
